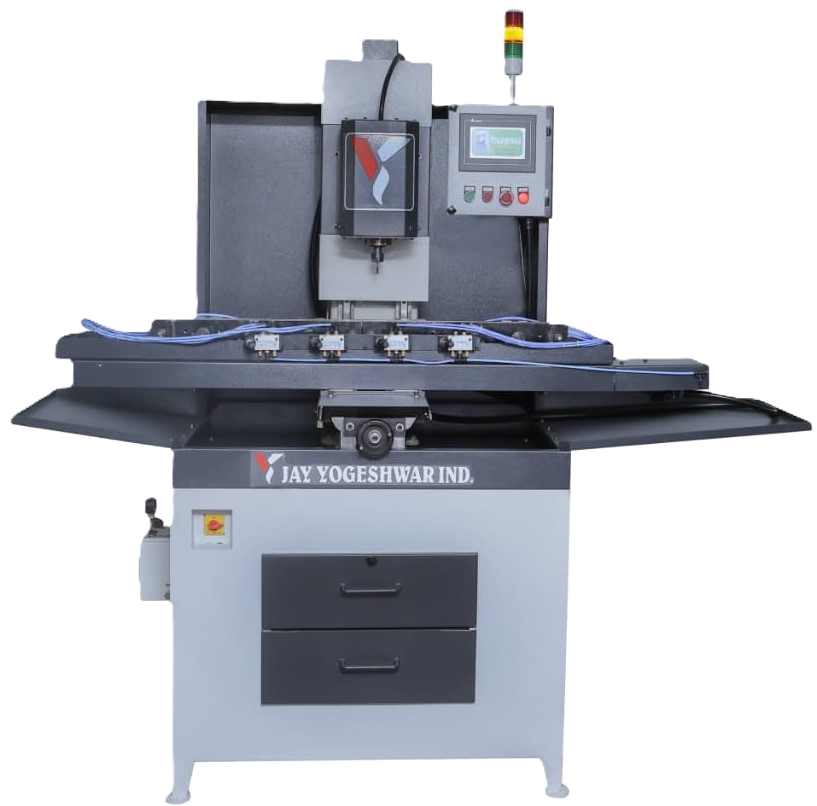

2 AXIS 1100MM DUAL SPINDLE DRILLING MACHINE
2 AXIS 1100MM DUAL SPINDLE DRILLING MACHINE
Product Description
The 2 AXIS 1100MM DUAL SPINDLE DRILLING MACHINE from Jay Yogeshwar Industries represents the pinnacle of precision engineering and manufacturing excellence. Designed to meet the demanding requirements of modern manufacturing, this machine combines advanced technology with robust construction to deliver exceptional performance and reliability.
Built with precision and durability in mind, the 2 AXIS 1100MM DUAL SPINDLE DRILLING MACHINE offers superior accuracy, high-speed operation, and exceptional versatility. Whether you're working with complex geometries or high-volume production runs, this machine delivers consistent results that exceed expectations.
Technical Specifications
| Specification | Value |
|---|---|
| BALL SCREW | |
| X | 25X10 |
| Y | MANUAL |
| Z | 25X10 |
| RAIL | |
| X | 25 MM |
| Y | - |
| Z | 25 MM |
| MOTOR | |
| X | 750W |
| Y | - |
| Z | 750W |
| TRAVEL | |
| X | 1100MM |
| Y | 100 MM |
| Z | 200 MM |
| SPINDLE | |
| SPINDLE NOSE | ER-20 + ER-20 |
| SPINDLE RPM VARIABLE | 12000 + 12000 |
| SPINDLE POWER | 2.2KW + 2.2KW |
| SPINDLE CAPACITY | 8MM + 8MM |
| DIMENTION & WEIGHT | |
| DIMENTION (W x D x H) | 1200X800X1500 |
| WEIGHT | 700 KG APPROX |
| MACHINE GUARDING | HALF |
| OTHERS | |
| CLAMPING | PNUEMATIC |
| CONTROL SYSTEMS | HMI PLC TOUCH SCREEN |
| ACCURACY ± | 0.050 |
| COOLANT | YES |
| LUBRICATION | YES |
