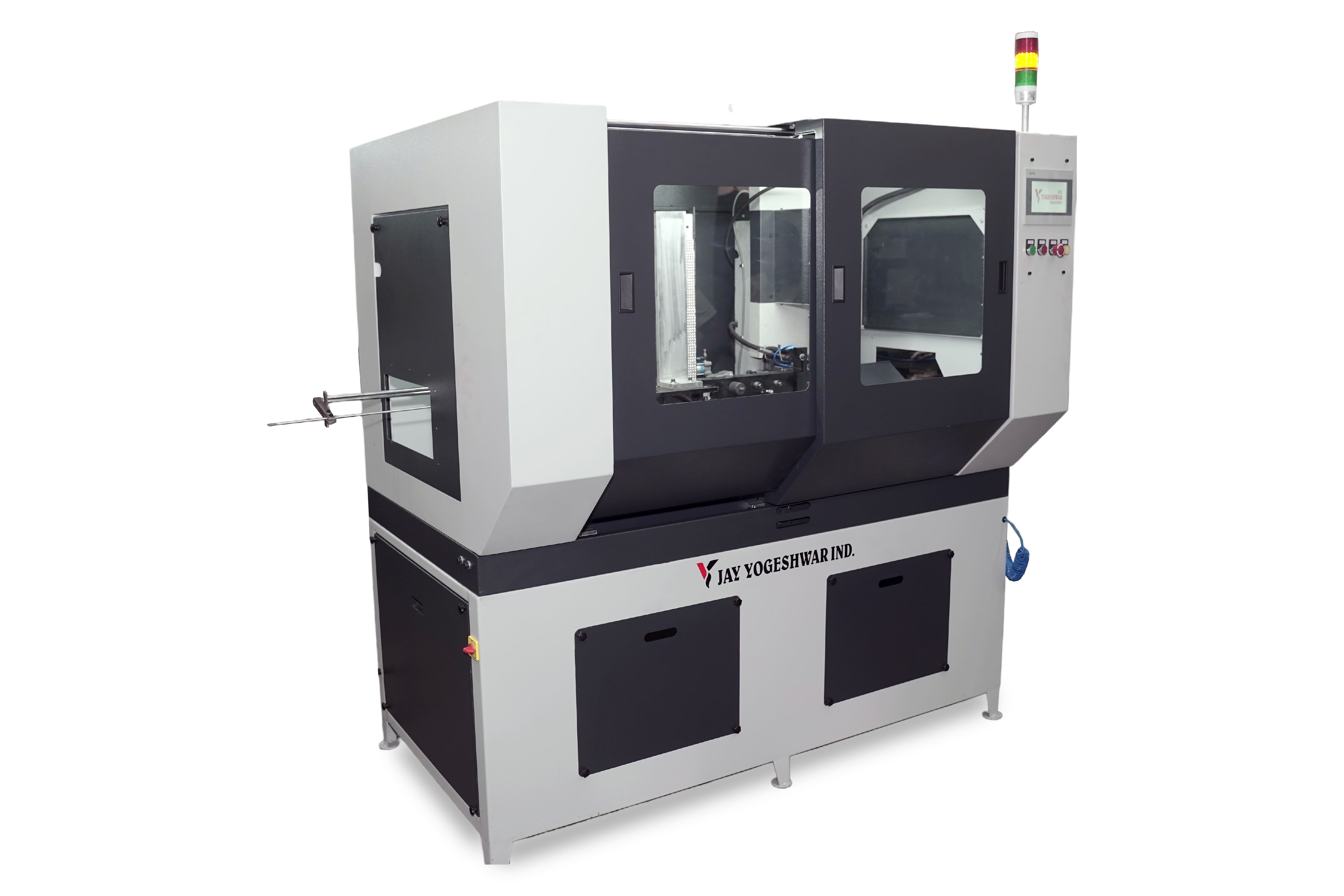

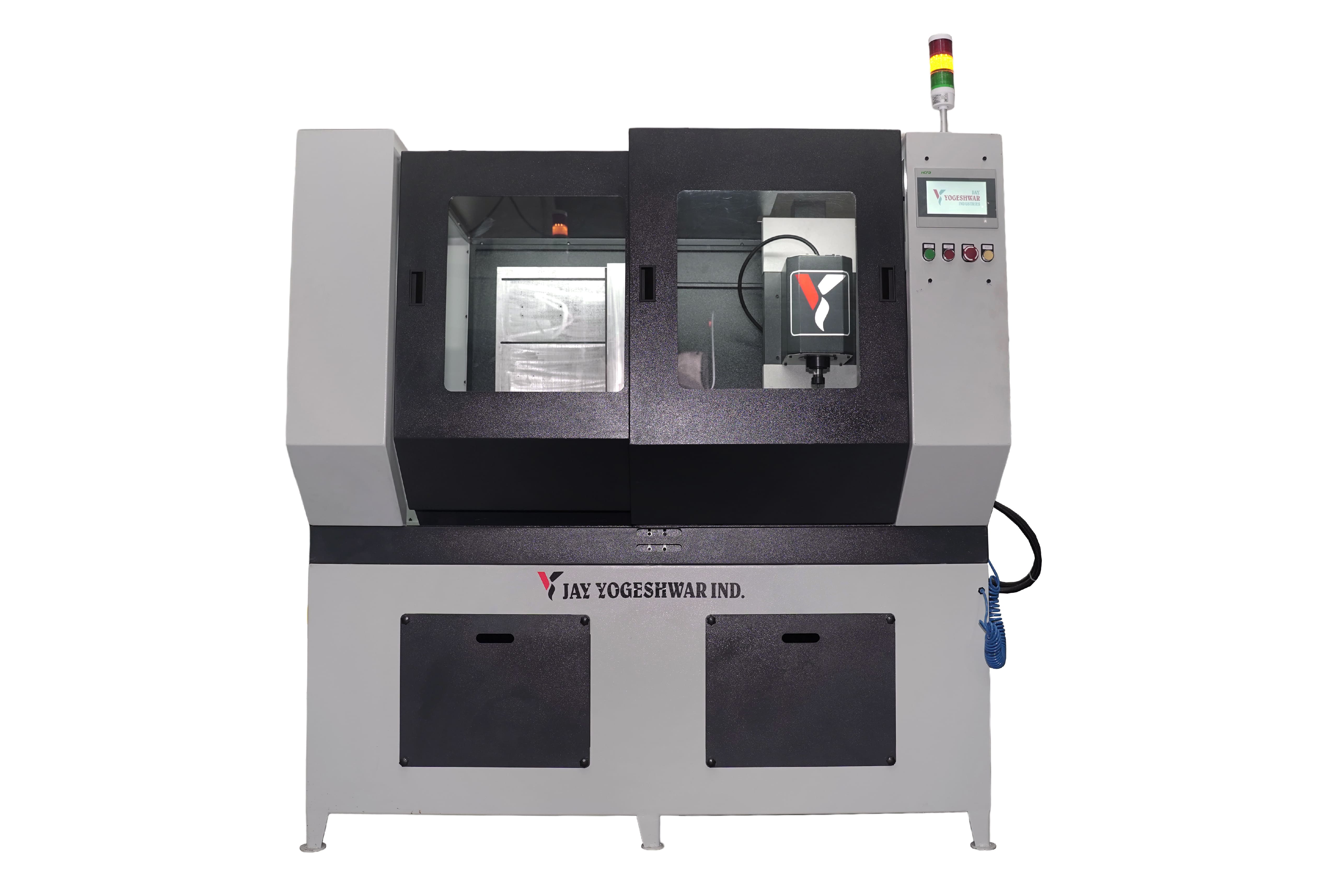

VMC MACHINE JYI-602A-D
2 AXIS 600MM PLC DRILLING MACHINE VMC TYPE
Product Description
The VMC MACHINE JYI-602A-D from Jay Yogeshwar Industries represents the pinnacle of precision engineering and manufacturing excellence. Designed to meet the demanding requirements of modern manufacturing, this machine combines advanced technology with robust construction to deliver exceptional performance and reliability.
Built with precision and durability in mind, the VMC MACHINE JYI-602A-D offers superior accuracy, high-speed operation, and exceptional versatility. Whether you're working with complex geometries or high-volume production runs, this machine delivers consistent results that exceed expectations.
Technical Specifications
| Specification | Value |
|---|---|
| BALL SCREW | |
| X | 25X10 |
| Y | MANUAL |
| Z | 25X10 |
| RAIL | |
| X | 25 MM |
| Y | - |
| Z | 25 MM |
| MOTOR | |
| X | 750W |
| Y | - |
| Z | 750W |
| TRAVEL | |
| X | 600 |
| Y | 100 |
| Z | 200 |

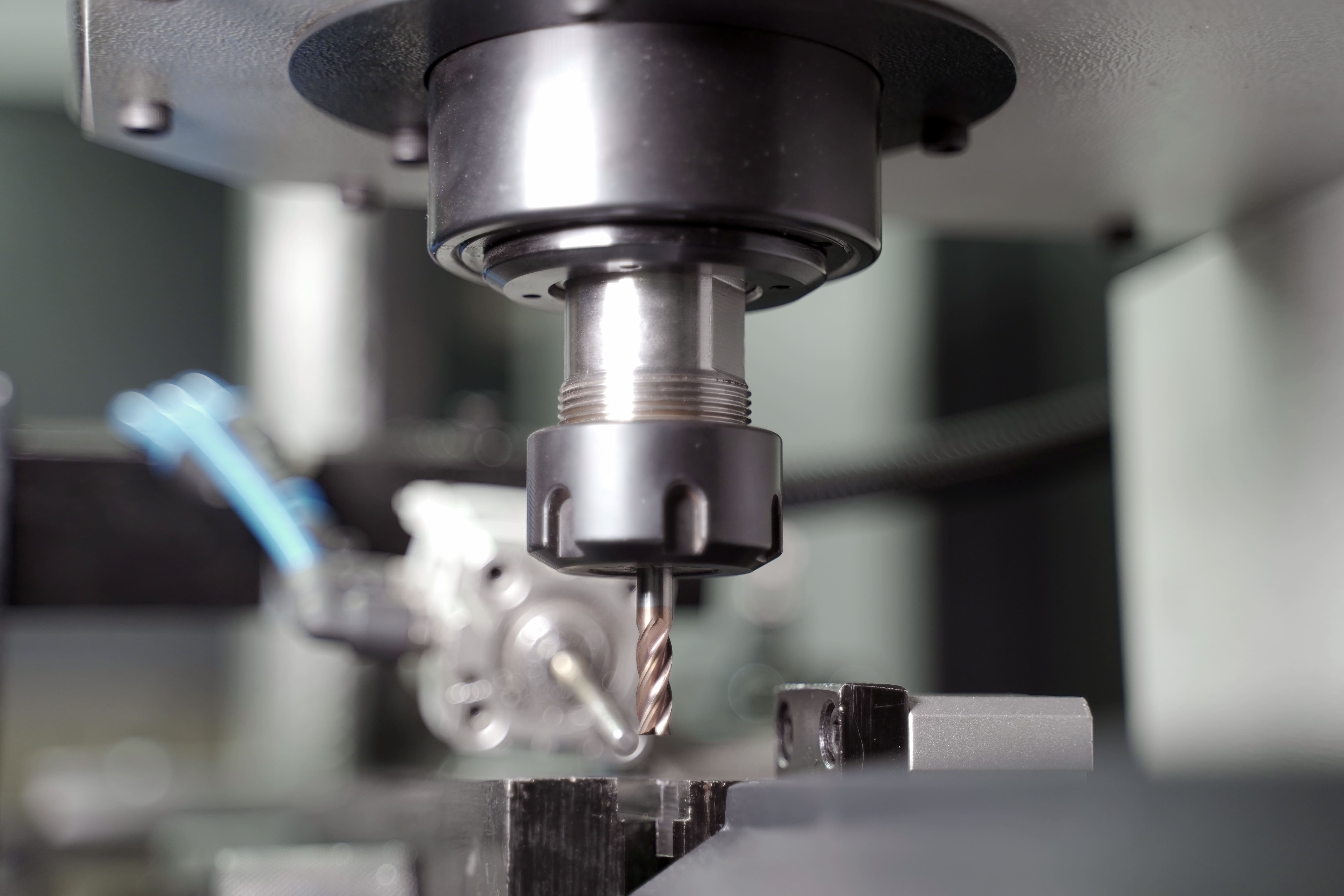

| SPINDLE | |
| DUAL SPINDLE NOSE | ER-25 |
| SPINDLE RPM | 12000 |
| SPINDLE POWER | 2.2 KW |
| DRILLING & TAPPING CAPACITY | - |
| DIMENTION & WEIGHT | |
| DIMENTION (W x D x H) | 1800 X 900 X 1500 |
| WEIGHT | 800 KG APPROX |
| MACHINE GUARDING | FULL |
| OTHERS | |
| CLAMPING | PNEUMATIC |
| CONTROL SYSTEMS | HMI PLC TOUCH SCREEN |
| ACCURACY | 0.050 |
| COOLANT | YES |
| LUBRICATION | YES |
