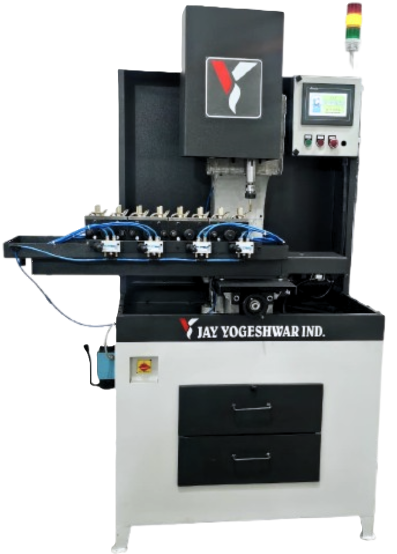

2 AXIS 1300MM DUAL SPINDLE PLC TAPPING MACHINE
2 AXIS 1300MM DUAL SPINDLE PLC TAPPING MACHINE
Product Description
The 2 AXIS 1300MM DUAL SPINDLE PLC TAPPING MACHINE from Jay Yogeshwar Industries represents the pinnacle of precision engineering and manufacturing excellence. Designed to meet the demanding requirements of modern manufacturing, this machine combines advanced technology with robust construction to deliver exceptional performance and reliability.
Built with precision and durability in mind, the 2 AXIS 1300MM DUAL SPINDLE PLC TAPPING MACHINE offers superior accuracy, high-speed operation, and exceptional versatility. Whether you're working with complex geometries or high-volume production runs, this machine delivers consistent results that exceed expectations.
Technical Specifications
| Specification | Value |
|---|---|
| BALL SCREW | |
| X | 25X10 |
| Y | MANUAL |
| Z | HEAD |
| RAIL | |
| X | 25 MM |
| Y | - |
| Z | SPINDLE |
| MOTOR | |
| X | 750W |
| Y | - |
| Z | - |
| TRAVEL | |
| X | 1300 MM |
| Y | 100 MM |
| Z | 65 + 65 |
| SPINDLE | |
| SPINDLE NOSE | ER-25 + ER-25 |
| SPINDLE RPM VARIABLE | - |
| SPINDLE POWER | 750 W + 750 W |
| SPINDLE CAPACITY | 8 MM + 8 MM |
| DIMENTION & WEIGHT | |
| DIMENTION (W x D x H) | 1200X900X1500 |
| WEIGHT | 800 KG APPROX |
| MACHINE GUARDING | HALF |
| OTHERS | |
| CLAMPING | MANUAL VISE |
| CONTROL SYSTEMS | HMI PLC TOUCH SCREEN |
| ACCURACY ± | 0.050 |
| COOLANT | - |
| LUBRICATION | YES |
